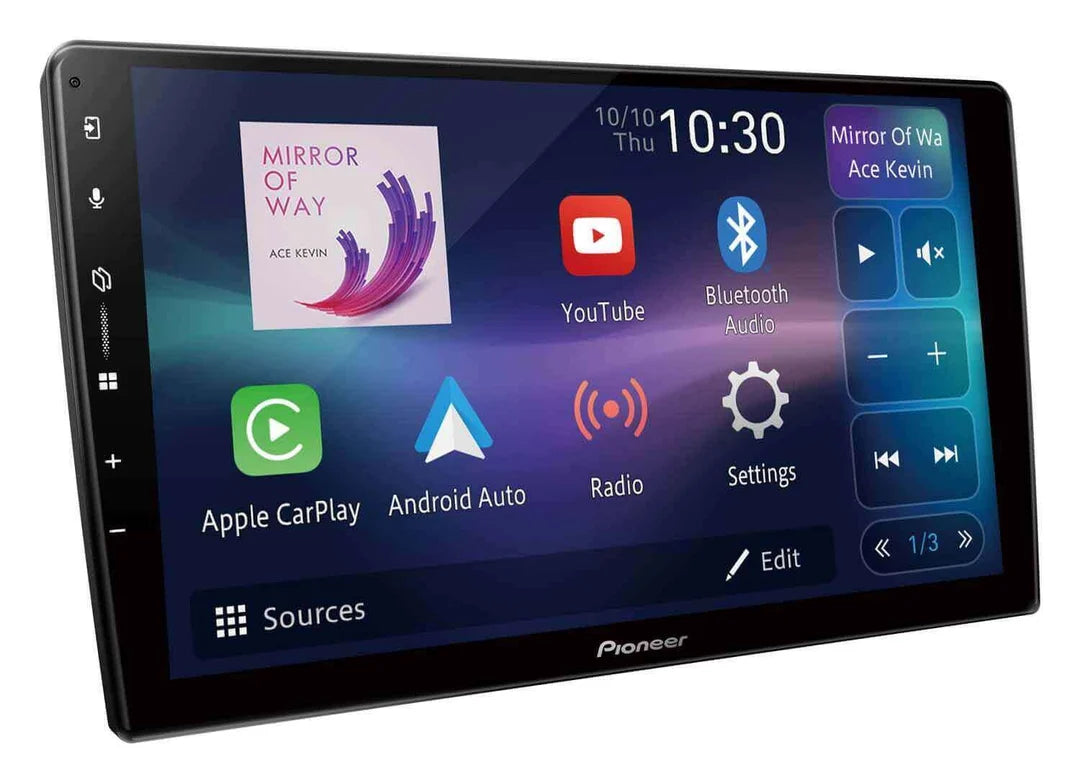

Pioneer DMH-AP6650BT 9" Wireless CarPlay and Android Auto

Upgrade your vehicle with the Pioneer DMH-AP6650BT, a premium 9-inch multimedia receiver designed to bring modern connectivity, powerful sound and a large, easy-to-use display to your car.

Featuring a 9" WSVGA (1024 × 600) capacitive touchscreen, the DMH-AP6650BT provides a clear and responsive interface while wireless Apple CarPlay and wireless Android Auto keep your smartphone connected without the need to plug in every time.

Built with Pioneer’s renowned audio engineering and a 64-bit AKM digital sound processor, this head unit offers extensive audio tuning options for an enhanced listening experience. Its ultra-shallow 37mm chassis also makes it suitable for a wide range of vehicle-specific installation applications.

Key Features

• 9" WSVGA Capacitive Touchscreen
• 1024 × 600 resolution
• Wireless & Wired Apple CarPlay
• Wireless & Wired Android Auto
• Dedicated Direct Access Key for Apple CarPlay & Android Auto
• Bluetooth 5.3 with dual-phone connectivity
• Built-in Wi-Fi
• WebLink® 3.0 and WebLink® Cast
• Spotify control via Apple CarPlay or Android Auto
• USB video and audio playback
• Full HD video playback via USB
• 13-band graphic equaliser
• Manual time alignment
• 3-way network mode
• HPF/LPF crossover controls
• 3 × 4V RCA pre-outs for front, rear and subwoofer
• MOSFET 4 × 50W built-in amplifier
• Rear-view camera input with AHD 1.0 support
• Second camera composite input
• Parking assist guidelines
• Steering wheel remote control input
• AM/FM radio with RDS
• Ultra-shallow 37mm chassis
• 12-month Pioneer warranty

Premium Sound & Audio Control

The DMH-AP6650BT is more than just a large touchscreen. Pioneer has equipped it with a 64-bit AK7604 digital sound processor from AKM, giving you advanced control over your vehicle's audio system.

With a 13-band EQ, manual time alignment, 3-way network mode, subwoofer control and multiple crossover settings, you can fine-tune the system to suit your speakers, amplifier and listening preferences.

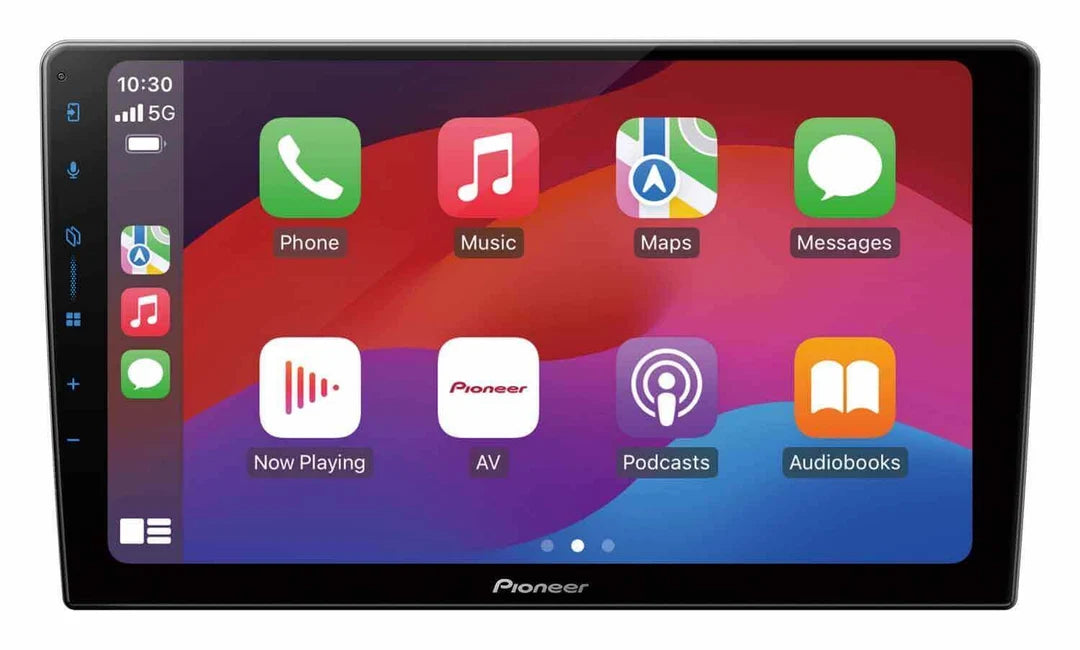

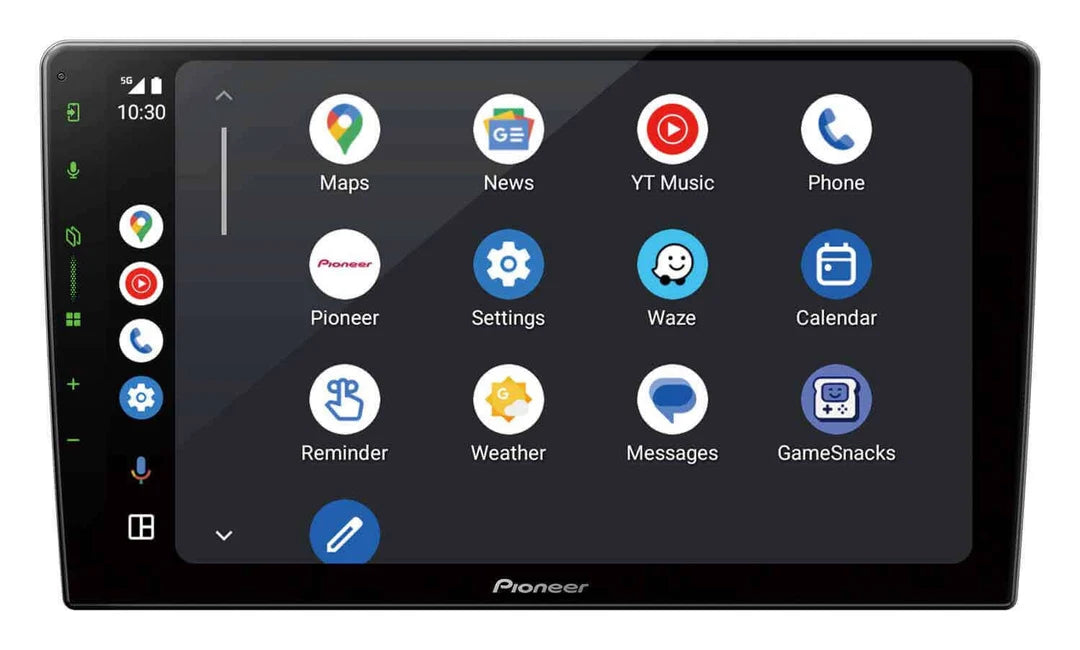

Wireless Apple CarPlay & Android Auto

Stay connected without constantly reaching for your phone. Compatible smartphones can connect wirelessly to Apple CarPlay or Android Auto, giving you convenient access to navigation, music, calls, messages and supported apps directly from the Pioneer touchscreen.

Wired connectivity is also supported when preferred.

Large 9" Display

The high-quality 9-inch WSVGA capacitive touchscreen provides a generous viewing area for navigation, music, phone functions and vehicle camera displays.

The flat-panel design gives your dashboard a modern appearance while the vehicle-specific installation options allow the receiver to be integrated into many factory dashboards using the appropriate fascia and wiring accessories.

Camera Support

The DMH-AP6650BT includes a dedicated reverse camera input and supports AHD 1.0 cameras, along with an additional composite camera input. This makes it an excellent option for vehicles requiring upgraded front or rear camera solutions.

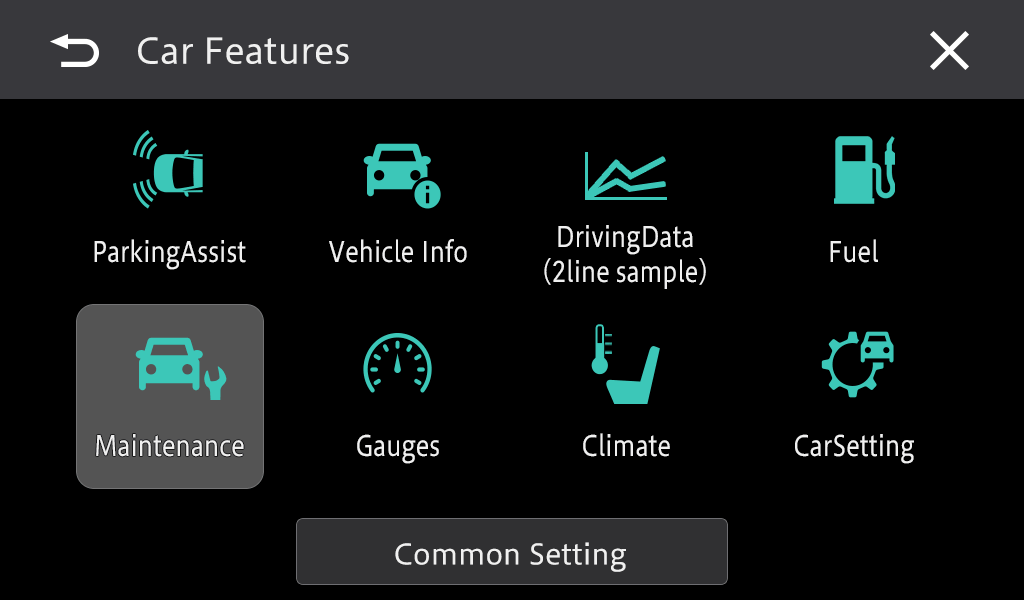

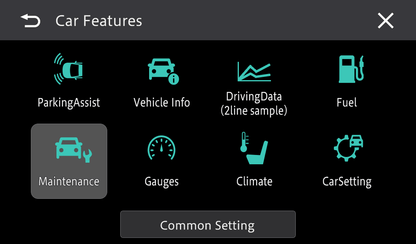

Vehicle Integration

Depending on the vehicle and installation components used, the Pioneer DMH-AP6650BT can be integrated with existing vehicle features such as steering wheel controls and factory cameras.

Vehicle-specific fascia kits, wiring harnesses and integration interfaces may be required and are sold separately or as part of selected installation packages.

Specifications

Display: 9" WSVGA Capacitive Touchscreen
Resolution: 1024 × 600
Bluetooth: Version 5.3
Apple CarPlay: Wireless & Wired
Android Auto: Wireless & Wired
Wi-Fi: Built-in
RCA Pre-outs: 3 pairs / 4V
Amplifier: 4 × 50W MOSFET
Equaliser: 13-band graphic EQ
USB: Rear Type-A
Camera Input: Rear Camera / AHD 1.0 compatible + second composite camera input
Chassis Depth: 37mm
Radio: AM/FM with RDS
Warranty: 12 months
