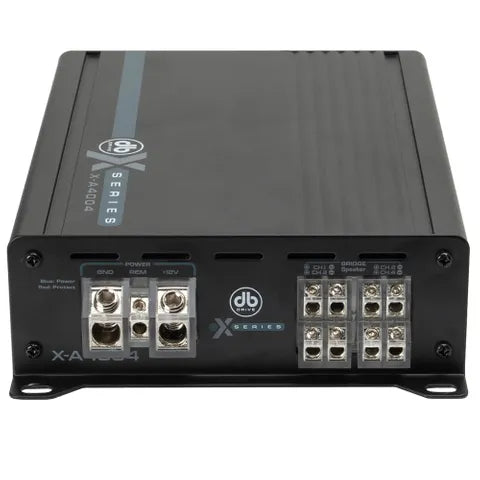

DB DRIVE X-A4004 4-Channel Amplifier

Upgrade your vehicle’s audio system with the DB DRIVE X-A4004 — a high-performance amplifier designed to deliver powerful, detailed, and dynamic sound. Whether you're an audiophile or simply want clearer, louder music, this amplifier brings exceptional value and performance.

High-Power Performance
With up to 150W x 4 at 2 ohms, the X-A4004 delivers clean, full-range output that enhances every detail of your music.

Bridgeable Versatility
Easily bridge channels to drive a subwoofer, giving your system deeper, stronger bass.

Efficient Circuit Design
Engineered for modern vehicles, its high-efficiency circuitry provides reliable power without straining your electrical system.

Precision Tuning

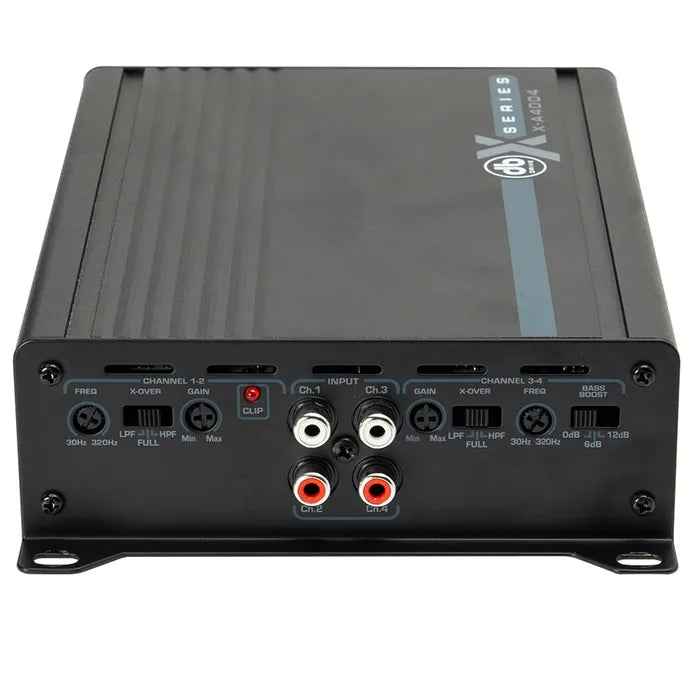

Features an adaptive high-pass/low-pass crossover, letting you fine-tune your audio for optimal clarity and balance.

Enhanced Build Quality

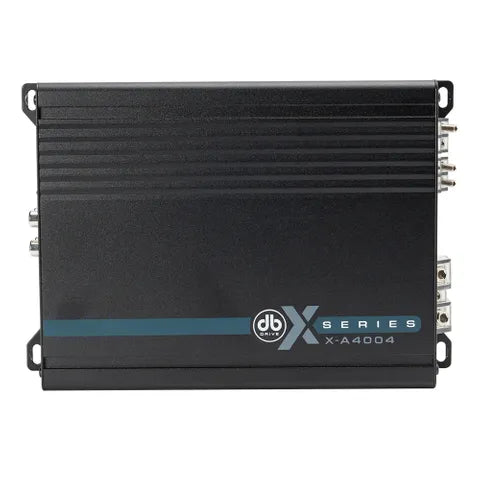

A 4-layer PCB ensures cleaner signal flow and improved accuracy. The compact chassis makes installation simple in a wide range of vehicles.

Transform your driving experience with rich, concert-like sound from the X-A4004.

Specifications

• Total Dynamic Power: 600W
• Power Output:
  • 4 × 75W @ 4Ω (Stereo)
  • 4 × 150W @ 2Ω (Stereo)
  • 2 × 300W @ 4Ω (Bridged)
• Frequency Response: 20Hz – 20kHz
• Gain Control: 0.2 – 6V
• Input Impedance: 10K
• Signal-to-Noise Ratio: 90dB
• High-Pass Filter: 30Hz – 320Hz
• Low-Pass Filter: 30Hz – 320Hz
• Variable Bass Boost: 0 – 12dB
