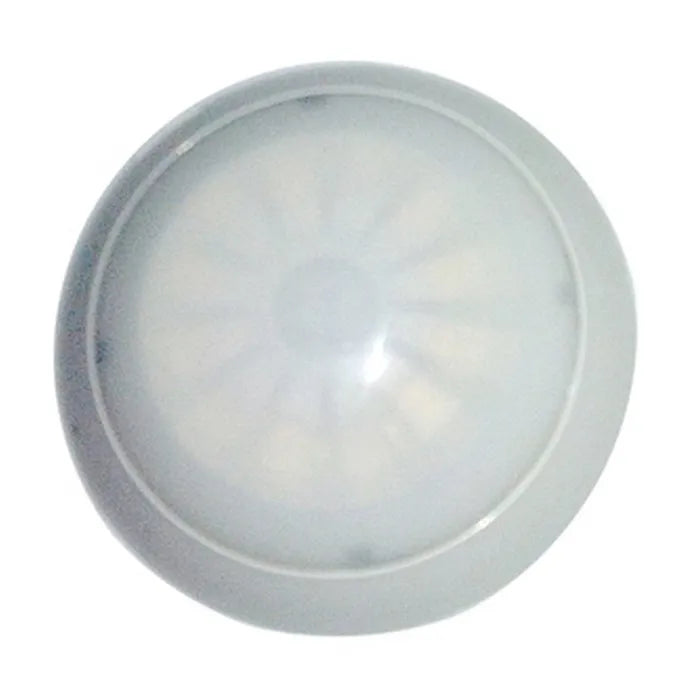

AVS PIR360 360° Infrared Motion Sensor for Vans & Trucks

Enhance the security of your vehicle with the AVS PIR360 360° Infrared Motion Sensor. Designed specifically for commercial vans, trucks, and larger vehicles, this high-performance passive infrared (PIR) sensor detects movement inside the vehicle, providing an additional layer of protection against theft and unauthorized access.

The AVS PIR360 is best installed in the centre of the vehicle's ceiling, allowing it to provide 360-degree interior coverage with minimal blind spots. Its stable quad-element sensing technology delivers reliable motion detection while reducing false alarms, making it an ideal addition to compatible AVS vehicle alarm systems.

Whether you carry valuable tools, equipment, or cargo, the AVS PIR360 helps protect your investment by detecting movement inside the vehicle even after doors have been secured.

Features

• 360° passive infrared (PIR) motion detection
• Stable quad-element sensor for reliable performance
• Normally Open (N/O) output contacts
• Ideal for commercial vans, trucks, service vehicles, and campervans
• Ceiling-mounted design for maximum interior coverage
• Helps detect unauthorized movement inside the vehicle
• Compatible with AVS vehicle alarm systems
• Compact and discreet installation

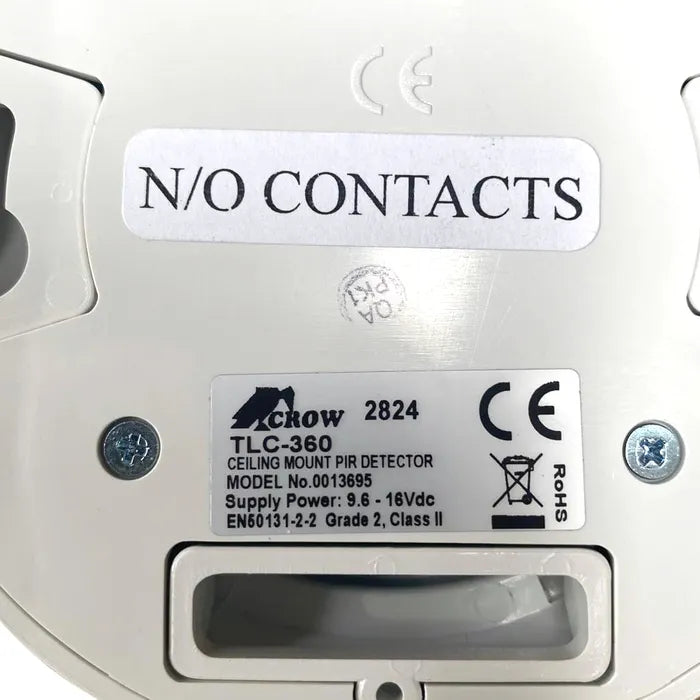

Specifications

• Model: AVSPIR360
• Sensor Type: Passive Infrared (PIR)
• Detection Coverage: 360°
• Output: Normally Open (N/O) Contacts
• Operating Voltage: 9.6–16V DC
• Dimensions: 110mm × 45mm
• Certification: EN50131 Grade 2, Class II

Recommended Installation

For optimal performance, mount the sensor in the centre of the vehicle ceiling. This position provides unobstructed 360° detection throughout the interior of tall vans and trucks.

Professional installation is recommended to ensure correct positioning and integration with your vehicle's alarm system.

Package Includes

• 1 × AVS PIR360 360° Infrared Motion Sensor

Warranty

Manufacturer's warranty applies.

Protect your tools, cargo, and vehicle with reliable 360° interior motion detection. The AVS PIR360 is the perfect upgrade for commercial vehicles requiring enhanced security.
