JVC KW-M590BT Wired CarPlay and Android Auto Head Unit

JVC KW-M590BT — Detailed Overview & Specifications

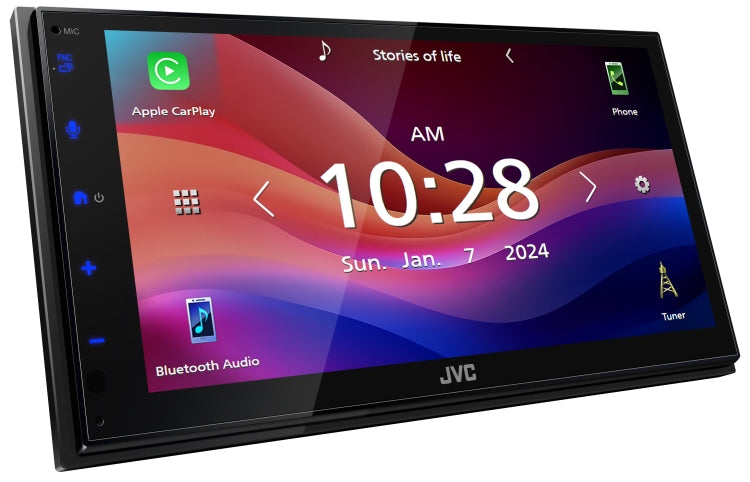

1. Display & Touch Interface

• 6.8" WSVGA LCD Display — Delivers roughly 1.6× the resolution of standard WVGA screens, producing richer color gradients and sharper visuals for a better viewing experience.

• Capacitive Touchscreen — Offers high clarity and responsive control that reacts to light touches with precision.

• Gesture Touch Control — Allows intuitive control via simple finger swipes across the screen (functionality may vary by source).

2. Connectivity & Smartphone Integration

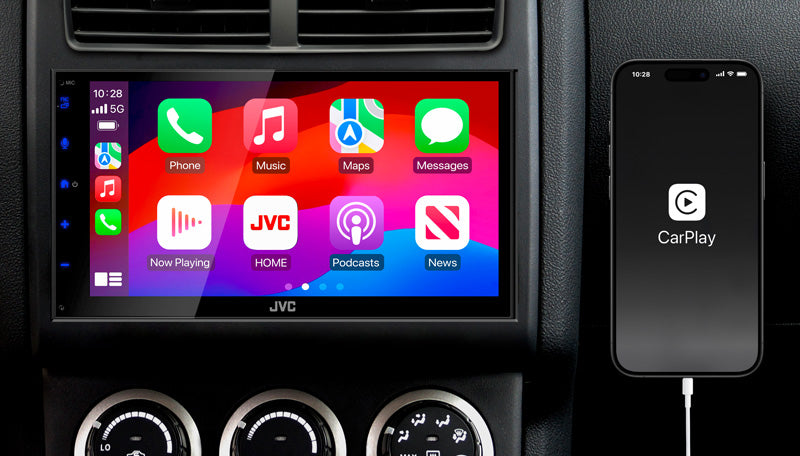

• Apple CarPlay (wired) — Seamlessly use iPhone features like Siri, Maps, calls, messaging, and music through the receiver.

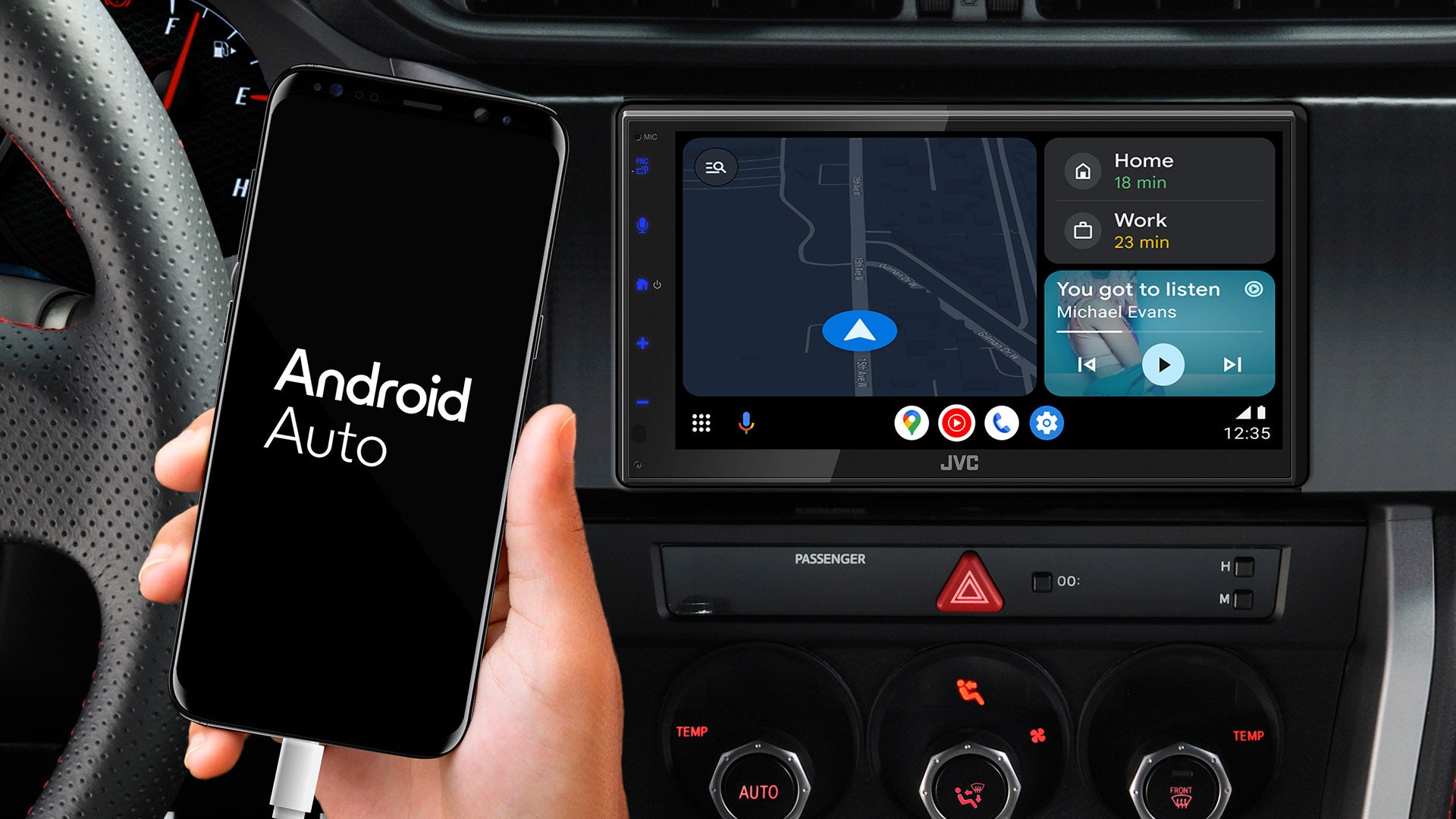

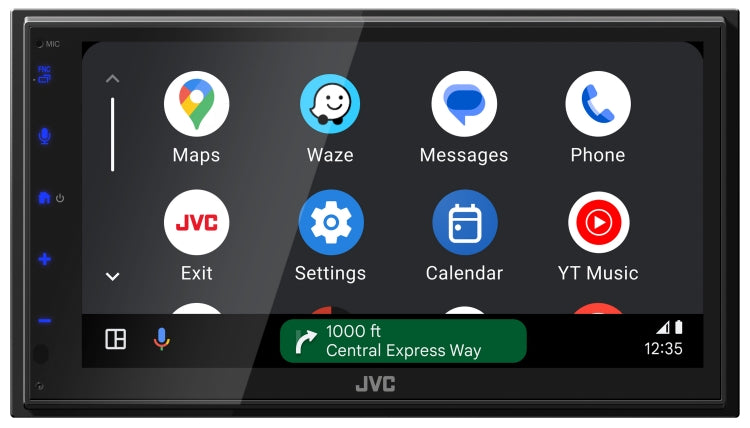

• Android Auto (wired) — Access Android features safely on the go—navigation, voice control, messaging, and media.

• USB Mirroring — Using the MirrorApp+ (Android) or Mirroring OA (Android) app, display and control your phone’s apps (e.g. Waze, YouTube, Instagram) via USB directly on-screen.

• Bluetooth 2.1A Fast Charging — Rapidly charge your smartphone through the USB port (up to 2.1 A).

3. Audio Quality & Control

• Built-in Amplifier — Outputs 22 W RMS × 4 channels (4 Ω, 20–20 kHz, 1% THD); peak output of up to 50 W × 4 (200 W total).

• Preamp Outputs — 5-channel (Front/Rear/Subwoofer) pre-outs at 2.5 V; subwoofer output includes independent level control (-40 dB to +6 dB).

• 13-Band Equalizer & Bass Boost — Offers fine-grain audio customization to tailor sound precisely to your taste.

• Time Alignment — Aligns sound timing across speakers so audio reaches the listener simultaneously, ensuring more accurate sound staging.

• Advanced Bluetooth — Supports HFP 1.8 for HD voice quality and AVRCP 1.6 for browsing and track control via connected devices.

4. Design & Form Factor

• Short L-Shaped Chassis — Sleek, space-saving design ideal for single- or double-DIN installations. Approximate dimensions: 7″ W × 3.9″ H × 3″ D.

• Rear Camera Input Enabled — Compatible with backup camera, allowing for safer reverse driving.

• Steering Wheel Control Ready — Retains factory steering wheel button functionality with an appropriate adapter (sold separately); also features learning remote functions for select vehicles.

• Optional Remote — Supports RM-RK259 remote control for added flexibility.

5. Tuner & Media Support

• AM/FM Tuner — Added convenience with traditional radio support.

• Disc-Free Design — No CD/DVD playback—entirely digital media focused (USB, Bluetooth, CarPlay/Auto).

6. Installation & Safety Guidelines

• Professional Wiring Recommended — Ensure red (ignition) and yellow (battery) wires connect via fuses, and avoid chassis grounding to prevent fire risk.

• Secure Grounding & Insulation — Use proper fuses, insulate wire contact points, and verify wiring correctness to avoid damage or hazards.

• Heat Precautions — Avoid touching metal housing during operation; mount unit away from direct heat, and use only the included screws.

Summary Table

Ideal for:

Car enthusiasts and drivers looking to upgrade their vehicle with a modern, feature-rich multimedia receiver that excels in smartphone integration, sound tuning, and sleek design, without unnecessary discs or clutter.
