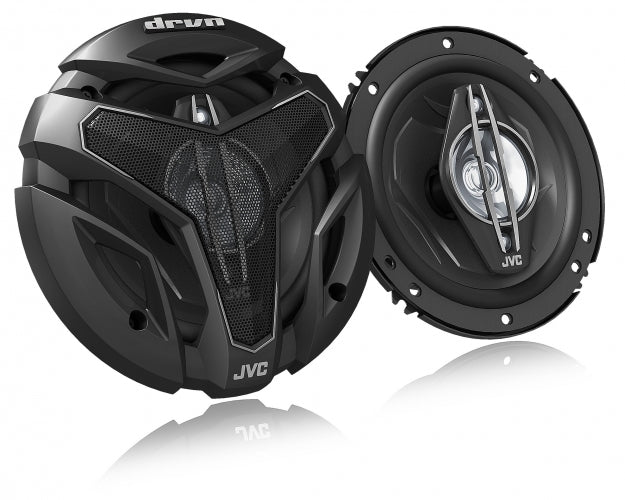

JVC CS-ZX640 6.5" 4-Way Coaxial Speakers

Upgrade your car’s audio system with the JVC drvn XX Series, engineered for powerful performance and an aggressive, modern look. Built on the proven drvn platform, the XX Series delivers warm, immersive sound with enhanced clarity across all frequencies.

Key Features

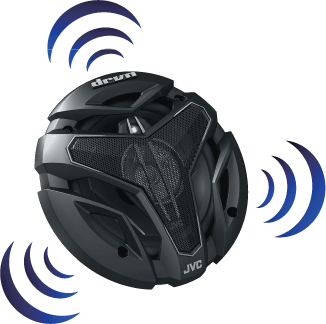

Aggressive 3D Shaped Grill Design
Semi-open grilles create a speaker-box effect that diffuses rich, ambient sound throughout the vehicle while adding a bold, sporty appearance.

Aramid Carbon Mica 3D Cone Woofer
High-strength cone design reduces distortion and delivers fast, accurate response with precise bass performance.

Durable Rubber Surround
Quick-responding rubber surround supports high-power input while maintaining clean, undistorted bass.

Enhanced Mid-Range & Clear Vocals
Larger cone design improves mid and high frequencies, producing lively sound and crisp vocals for an overall balanced listening experience.

Technical Specifications

Model: CS-ZX640
Speaker Size: 16 cm (6-1/2")
Type: 4-Way Coaxial

Woofer

• Diaphragm: Carbon Mica 3D Cone
• Surround: Single Roll Rubber Surround
• Magnet: Ferrite

Midrange

• Size: 5.2 cm (2-1/16")
• Diaphragm: Poly-Ether Imide Cone
• Magnet: Ferrite

Tweeter

• Size: 1.5 cm (19/32")
• Diaphragm: Poly-Ether Imide Dome

Super Tweeter

• Size: 1.2 cm (1/2")
• Diaphragm: Poly-Ether Imide Dome

Performance

• Peak Power: 350W
• RMS Power: 50W
• Impedance: 4 Ohms
• Sensitivity: 89 dB/W/m
• Frequency Response: 40 – 25,000 Hz

Installation

• Mounting Depth: 57 mm (2-1/4")
• Weight: 1.12 kg
• Magnet Mass: 445 g
